<test a={xdmp:random()}/>

<test a="{xdmp:random()}"/>

XQUT will usually be invoked like this:

The cq app server should point to the code you are testing, so that your test suite can import libraries. The eval root is different: it is the location of the XQUT code, so that you only need one copy of XQUT. The external variable SUITE is an XML test suite. A simple test suite might look like this:

The XML is fairly simple. Under the root suite element we have one or more unit elements, each representing a test. The test XQuery can be defined as the lexical value of the element, or as its expr child. The result can be defined by a result attribute or element.

For more sophisticated tests, you can add xsi:type attributes and sequences of result elements. You can also use an optional environment element to import libraries, define variables, and define namespace prefixes. If you add setup elements, these will be evaluated before any tests. The test suite for XQUT itself contains more examples.

Let's start with the W3C use cases. First, let's fetch the sample data and put it into MarkLogic. We can do that using cq. I'll leave out the schemas, since we don't need those. I also won't be exhaustive about optimizing every expression in these examples: suffice to say that there is room for even more improvement.

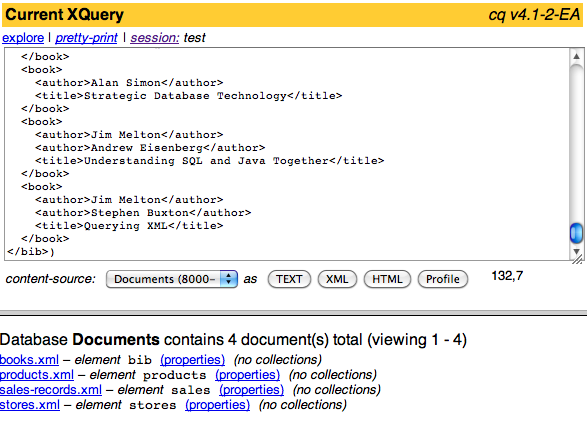

Sorry about the long block of code, but we need those documents. Paste that into cq, evaluate it, and you should get the empty sequence. That means your documents were inserted correctly: you can use the 'explore' link to check.

Now we can write some queries. Here is the first use case (Q1).

And the result should look like this:

We can't write XQuery 3.0 using XQuery 1.0 — but we can get the same result using an extra distinct-values step.

This code is a little awkward, though. Instead of looping through the records once, we have to perform a database lookup on each product name. Normally this would be an unavoidable cost, and perhaps a reason to look forward to XQuery 3.0. But MarkLogic gives us a way to cheat, and use an accumulator model to get the same result more quickly. I'm talking about maps.

This produces the same output, and will scale better the distinct-values() version would. Of course it is also less portable. But database application developers often have to implement non-portable optimizations, and the less portable code can be segregated into its own library modules.

Now let's look at the next example (Q2).

Expected result:

Here is a solution using maps:

Again, this solution produces the same results. This time we had two elements in the grouping key, and the map key must be a string. So we had to use an old database trick and concatenate the two values with a known delimiter. Naturally we have to be careful in our choice of delimiter.

For the remaining queries, I'll skip the W3C examples and output XML. Here are my solutions. Again, these return the desired results, but could benefit from more optimization work.

This final use-case is kind of odd, because the sample code works if you simply comment out the "group by". In other words, the sample data only contains one group. But I reimplemented it anyway.

That's it. I hope this was worth your time.

I'm sure I've forgotten a few things, but hopefully this will get you started.

Use strong typing

You can catch many potential bugs this way. If a function's parameters and return value aren't strongly typed, there should be a comment explaining why that isn't practical. Try to narrow down the types, too: be as specific as possible. If a parameter or return type is node(), ask why it can't be element()? If it's element(), why can't it be element(foo) or element(*, typename) instead? Don't forget about quantifiers and schema-element().

Besides function variables and return types, this also applies to module variables, FLWOR variable bindings, and typeswitch variable bindings.

Look for injection paths

The xdmp:eval and xdmp:value functions are especially vulnerable, and should be avoided as much as possible in favor of xdmp:invoke and xdmp:unpath, respectively. But it's important to check any user input. For example, is the user entitled to see the contents of the document requested via xdmp:get-request-field? It's best if the document is protected by a good security configuration with read permissions, but if security checks are being done in application code, be especially careful to guard against injection attacks.

Are there order-by clauses or expressions with gt or lt operators?

If so, could they be accelerated using range indexes? If range indexes do exist, are they working? Sometimes the FLWOR syntax will be subtly outside the boundaries of what MarkLogic Server can optimize, and sometimes the query collation won't match a string range index collation.

You can check using xdmp:query-trace or xdmp:plan. Often this makes a good unit test, especially for performance-critical functionality.

Does the code rely on effective boolean values?

If you see 'if ($foo)then...', ask what the type of $foo is. If it isn't already a boolean, then the effective boolean value rules come into play. That could cause mysterious bugs or errors. Would it be better to write 'if(exists($foo))...' or perhaps 'if ($foo ne 0)...' instead? The core idea here is to write what you mean, and mean what you write.

This idea also applies to XPath predicates, where-clauses, and any other boolean context.

Review any XPath with '/text()' or '//text()' steps

When I see a query is full of text() steps, my first thought is that the developer may not really understand atomization. Believe it or not, there's often some performance to be gained by eliminating these extra steps in favor of atomization. But more importantly, text() can be dangerous. It doesn't mean "give me the lexical string value of the context nodes". It does mean "give me the text children, if any, of each of the context nodes". So it can return nothing, or one text node, or one million text nodes. These two code examples look similar, but behave in very different ways. As a result, I try to avoid text() as much as possible. When it is needed, I leave comments describing why string() won't work, and what will happen in cases such as empty sequence or multiple nodes.

let $n := <p>nodes <i>can</i> have multiple text children</p>

return concat('testing... ', $n)

=> testing... nodes can have multiple text children

let $n := <p>nodes <i>can</i> have multiple text children</p>

return concat('testing... ', $n/text())

=> XDMP-ARGTYPE: (err:XPTY0004) concat("testing... ", (text{"nodes "},

text{" have multiple text children"})) -- arg2 is not of typexs:anyAtomicType?

Review any XPath with '//' steps

Sometimes these are necessary, and sometimes they even benefit performance. But more often they are a sign of short-sighted laziness, or outright ignorance of the content. Rewriting these expressions as fully-qualified paths can improve coderesiliency and also performance.

If the business logic really calls for descendant-or-self::node(), comment the code to explain why.

Review any function calls within XPath predicates

Function calls inside an XPath predicate can be horrible for performance, since the function must be called for every item in the predicate's input sequence. If the result of the functioncall is static, simply bind the result to a variable. This is also trueof operators: even simple math operations like:

$list[$start to $start +$size]

$list[$start to $stop]

If you have trouble seeing why this might be a problem, consider a list with 100 items. Now consider this expression:

$list[ xdmp:sleep(100) ]

Evaluation will cost 100-ms per item, or 10 seconds total. Every expression takes a finite amount of time to evaluate, and performance optimization is sometimes a matter of reducing the expression count.

Review any XPath sub-expressions within XPath predicates

Here I don't mean [ foo ] but rather [ foo/bar ] or [ foo[bar] ]. These sub-expressions can be bad for performance. If the result of the sub-expression is static, bind it to a variable.

Watch for nested if-then-else-if-then-else... sub-expressions

Can it be rewritten as a typeswitch? If so, this is often easier to read, and faster.

Look for opportunities to eliminated unnecessary expressions

For example, I frequently see code resembling this:

...

return if ($flag) then $result else ()

It would be clearer and more XQuery-like to write this as:

...

where $flag

return $result

Another common pattern is:

if ($foo/bar) then $foo/bar else ()

This can be re-written without changing the results, as:

$foo/bar

The trick is to understand that if there are no results for an XPath expression, then the result is (). A similar pattern is:

if ($foo eq $bar) then true() else false()

This can be written as:

($foo eq $bar)

The parenthesis aren't strictly necessary, but make it easier to read expressions like this:

let $baz := ($foo eq $bar)

...

Watch out for function mapping

Function mapping is a powerful friend and a terrible enemy. If the code is a 0.9-to-1.0 port, I recommend disabling function mapping in every module. If it's new 1.0 code, think about how function mapping might help or cause problems in different situations.

Disabling function mapping is easy. In the prologue, simply add:

declare option xdmp:mapping "false";

Your turn

As Mary might ask: comments, questions, or denunciations? Any tips of your own that you would like to share? Let's hear them.
